PER-P30D

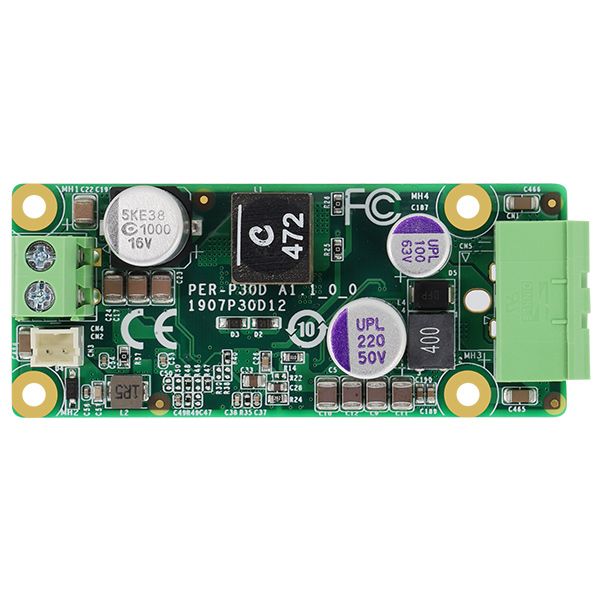

Power Supply Module with DC 5V & DC 12V Output
US$39.00
Availability:
Out of stock
SKU
PER-P30D-A11-0001
- Max. 120W output
- DC 9~36V input
- Power input with UVLO (Under Voltage Lockout)
- Power output with OCP (Over Current Protection)
- ±5% output voltage tolerance
- Compact size for PICO boards
Power Supply Module with DC 5V & DC 12V Output.
| System | |
| Power Input | DC 9~36V |
| Power Output | DC 5V + DC 12V /max.120W (with HSK and 0.5m/s air flow) |
| Output Voltage tolerance | ±5% |
| Dimension | 1.18" x 2.84" (30mm x 72mm) |
| Gross Weight | 0.07 lbs (0.03 kg) |
| Input Connector | 2-pin Phoenix Connector.180D (Default) |
| Output Connector | 2-pin Phoenix Connector.90D (Default) |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
